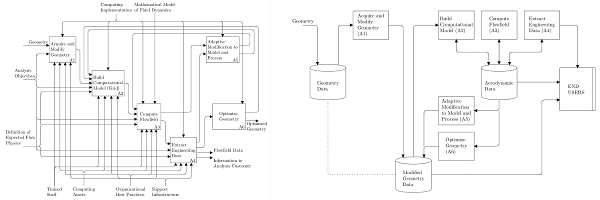

A MetaPost package providing facilities to assist in drawing diagrams that consist of boxes, lines, and annotations. Particular support is provided for creating EXPRESS-G diagrams, for example IDEF1X, OMT, Shlaer-Mellor, and NIAM diagrams. The package may also be used to create UML and most other Box-Line-Annotation charts, but not Gantt charts directly.
If possible, get this package from your distribution using its installation manager. (For installation help, click on your distribution's name.)
| Distribution | Package name |
|---|---|
| MiKTeX | expressg |
| TeX Live | expressg |
You can also visit expressg's CTAN directory to browse the source or download the material for installation by hand.
