lcircuit – Circuit symbols for use in LaTeX picture mode

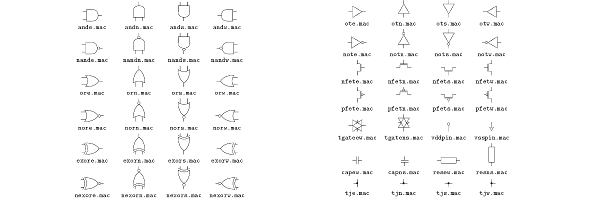

The set includes all basic logic gates in four orientations, FETs, power supply pins, transmission gates, capacitors, resistors and wiring T-junctions.
|License||Unknown Status, No Information Available|
graphics produced by one of the *TeX engines
Download the contents of this package in one zip archive (82.3k).
