kblocks – Easily typeset Control Block Diagrams and Signal Flow Graphs

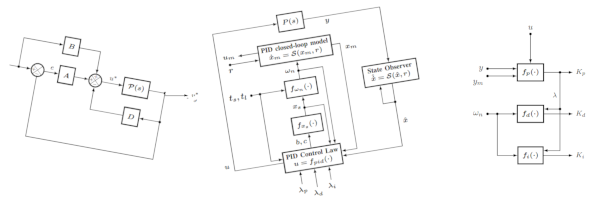

Kblocks defines a number of commands to make drawing control block diagrams using TikZ/PGF more structured and easier. It reduces the learning curve forTikZ/PGF and serves as a frontend, by focusing on the block resp. flow diagrams only.

Sources/graphics/pgf/contrib/kblocks
Documentation
Home pagehttps://github.com/somefunAgba/kblocks
Bug trackerhttps://github.com/somefunAgba/kblocks/issues
Repositoryhttps://github.com/somefunAgba/kblocks
Developershttps://github.com/somefunAgba/kblocks/pulls
Version2.0
LicensesMIT License
Copyright2021 Oluwasegun Somefun
MaintainerOluwasegun Somefun
Contained inTeX Live as kblocks
MiKTeX as kblocks
TopicsBlock Diagrams
Flow Diagrams
