New on CTAN: bodeplot
Date: October 31, 2021 2:59:44 PM CET
Rushikesh Kamalapurkar submitted the
bodeplot
package.
Version number: 1.0
License type: lppl1.3c
Summary description: Draw Bode, Nyquist and Nichols plots with gnuplot or pgfplots
Announcement text:
LaTeX package to plot Bode, Nichols, and Nyquist diagrams. Added functionality over the similar `bodegraph` package: - New `\BodeZPK` and `\BodeTF` commands to generate Bode plots of any transfer function given either poles, zeros, gain, and delay, or numerator and denominator coefficients and delay - Support for unstable poles and zeros. - Support for complex poles and zeros. - Support for both `gnuplot` (default) and `pgfplots` (package option `pgf`). = Support for linear and asymptotic approximation of magnitude and phase plots of any transfer function given poles, zeros, and gain.
This package is located at https://mirrors.ctan.org/graphics/pgf/contrib/bodeplot More information is at https://www.ctan.org/pkg/bodeplot
Thanks for the upload. For the CTAN Team Manfred Lotz CTAN is run entirely by volunteers and supported by TeX user groups. Please join a user group or donate to one, see https://ctan.org/lugs .
LaTeX package to plot Bode, Nichols, and Nyquist diagrams. Added functionality over the similar `bodegraph` package: - New `\BodeZPK` and `\BodeTF` commands to generate Bode plots of any transfer function given either poles, zeros, gain, and delay, or numerator and denominator coefficients and delay - Support for unstable poles and zeros. - Support for complex poles and zeros. - Support for both `gnuplot` (default) and `pgfplots` (package option `pgf`). = Support for linear and asymptotic approximation of magnitude and phase plots of any transfer function given poles, zeros, and gain.
This package is located at https://mirrors.ctan.org/graphics/pgf/contrib/bodeplot More information is at https://www.ctan.org/pkg/bodeplot
Thanks for the upload. For the CTAN Team Manfred Lotz CTAN is run entirely by volunteers and supported by TeX user groups. Please join a user group or donate to one, see https://ctan.org/lugs .

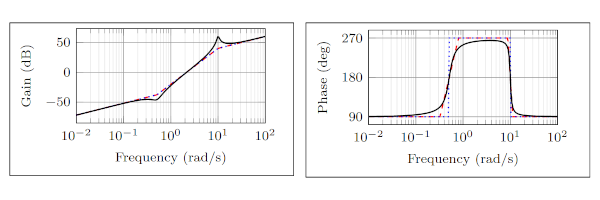

bodeplot – Draw Bode, Nyquist and Nichols plots with gnuplot or pgfplots
This is a LaTeX package to plot Bode, Nichols, and Nyquist diagrams. It provides added functionality over the similar bodegraph package:
- New \BodeZPK and \BodeTF commands to generate Bode plots of any transfer function given either poles, zeros, gain, and delay, or numerator and denominator coefficients and delay
- Support for unstable poles and zeros.
- Support for complex poles and zeros.
- Support for general stable and unstable second order transfer functions.
- Support for both Gnuplot (default) and pgfplots (package option pgf).
- Support for linear and asymptotic approximation of magnitude and phase plots of any transfer function given poles, zeros, and gain.
Package | bodeplot |
Version | 1.0.6 2021-11-18 |
Copyright | 2021 Rushikesh Kamalapurkar |
Maintainer | Rushikesh Kamalapurkar |
